High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

Name: High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 1105mm Size and 3D Pass Rate 98
Brand: chuanglixun
Price: 149.12 USD

Quality High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% for sale

Model Number : ST/PC

Place of Origin : Guangdong, China

Brand Name : chuanglixun

MOQ : 1

Price : $149.12-168.25

Net weight : 0.5kg

Material : harden stainless steel

Size : 110*5mm

No. of Fiber : 12

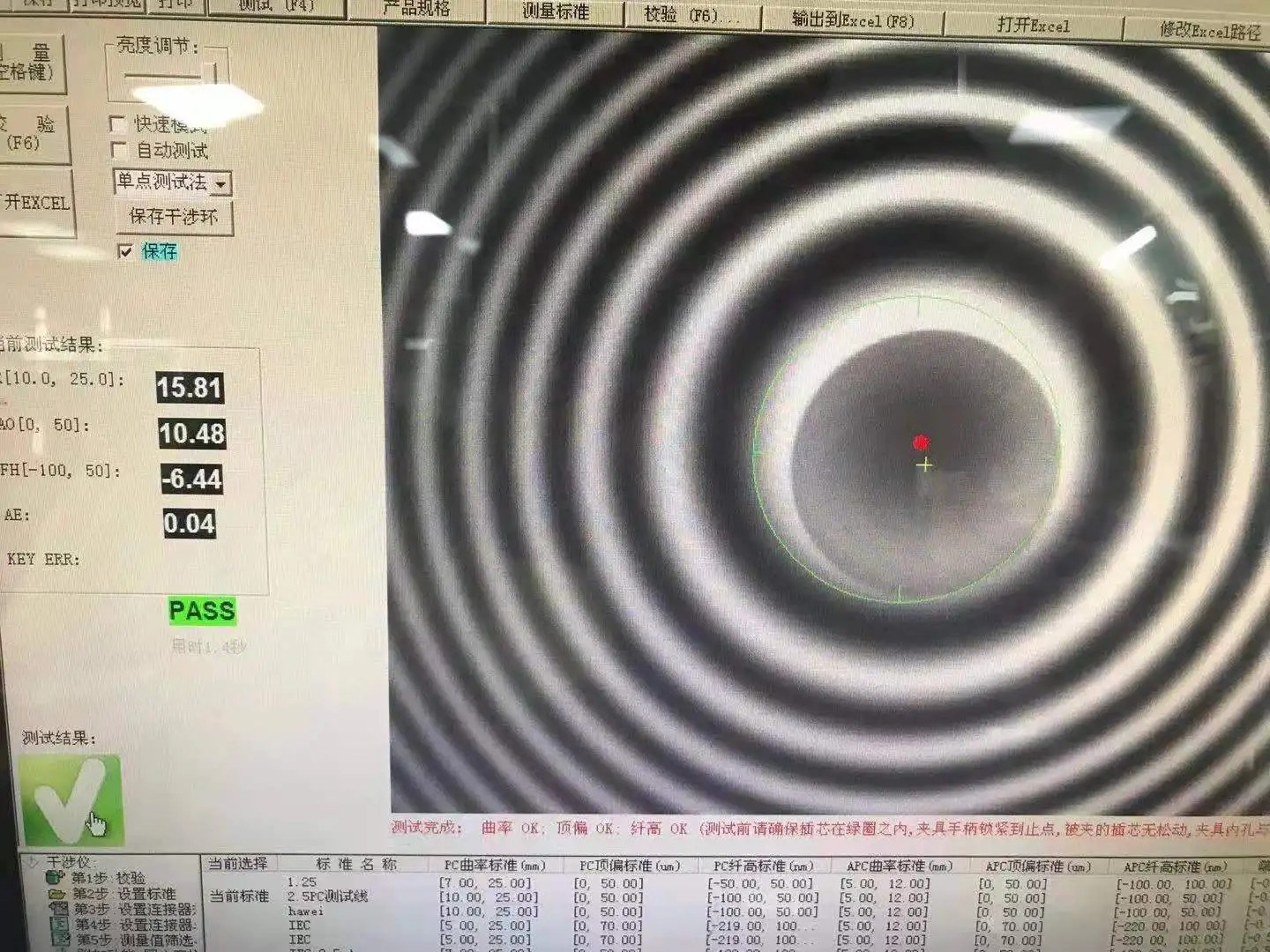

3D pass rate : ≥98%

Insertion Loss : ≤0.20dB

Return Loss PC : ≥55dB

Return Loss APC : ≥60dB

Connector type : SC,FC,LC,ST,MU,E2000(PC/APC)

Polishing machine type : Center Pressure Polish Machine

Number of fiber cores : 12

IPC Structure : Independent compression of each connector

Steel type : hardened steel S2316

First pass yield : 100%

Interference rate : ≥98%

Contact Now

Products Description

Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), This fiber polishing fixture is high stability and good surface quality.

fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 provide long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, and also according to the customer request.

Features

1. Applicate to ST/PC ST/UPC connector polishing 2. High efficiency, and polishing 12 ferrules in one cycle 3. Holders on jig replacable, effeciency for polishing cost saving 4. The geometry dimensions of polished ferrules comply with IEC standards 5. The first pass yield for end face quality reach 100%

Model			ST/PC ST/UPC
Net weight			0.5kg
Connector type			SC,FC,LC,ST ,MU,E2000( PC/APC)
Polishing machine type			Center Pressure Polish Machine
Number of fiber cores			12
Material			Hardened stainless steel
Insertion Loss			≤0.20dB
Return Loss			≥55dB (PC) ≥60dB (APC)
Warranty time			24 months

High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

Other Models

1.Are you a factory or a trader？

......we are factory.

2.What is your MOQ?

......MOQ 1 piece.

3.Do you provide sample services？
......Yes, we will provide samples.

4.How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5.How do we pay?

......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services？

......Yes, we provide customized services, According to customer requirements and description.
